Magna Nymburk

Realized in the year 2017 for client Magna Nymburk – Installation of a compressor station

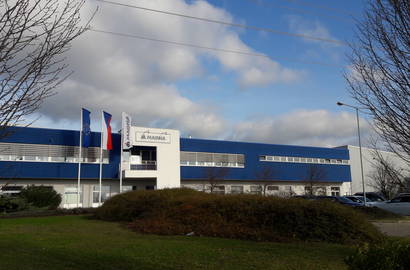

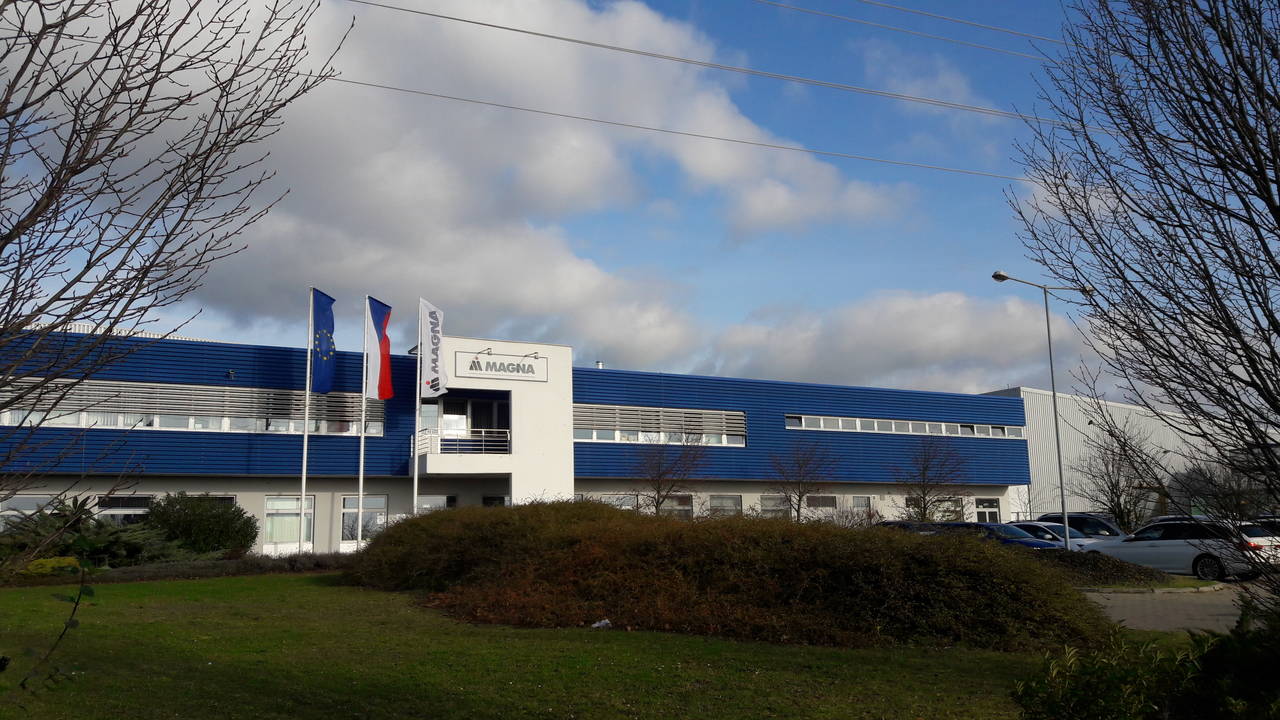

For the new paint shop of the Magna Nymburk plant, the automotive components supplier, we have installed a new compressor station on key with a superior control system and a silicon-free compressed air distribution.

The expansion of the plant’s production capacity required an increase in the capacity of the existing compressor station by 2 x 90 kW.

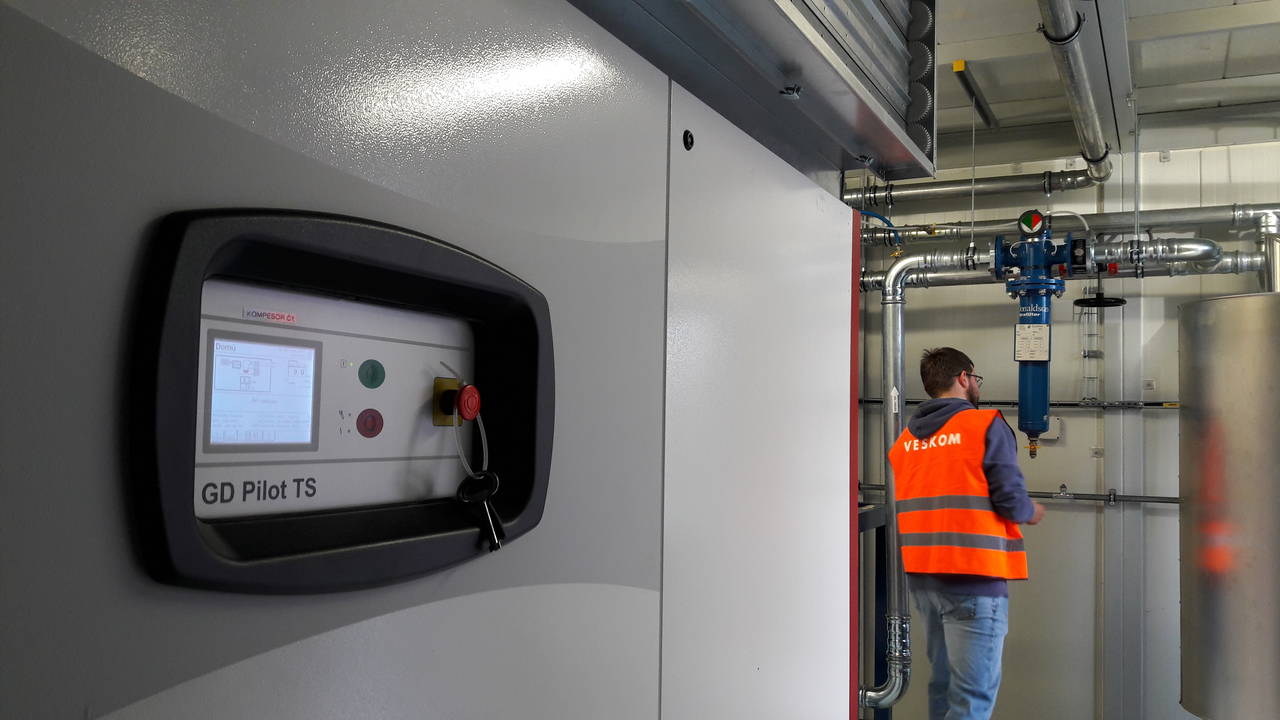

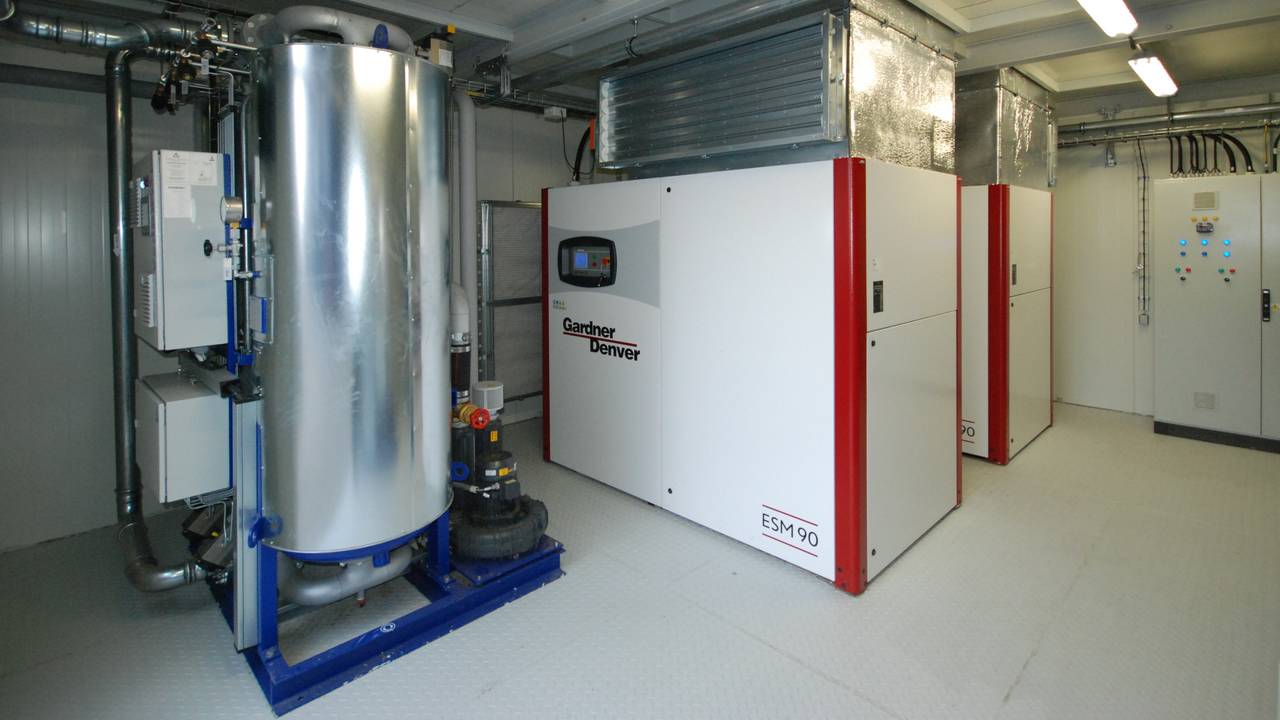

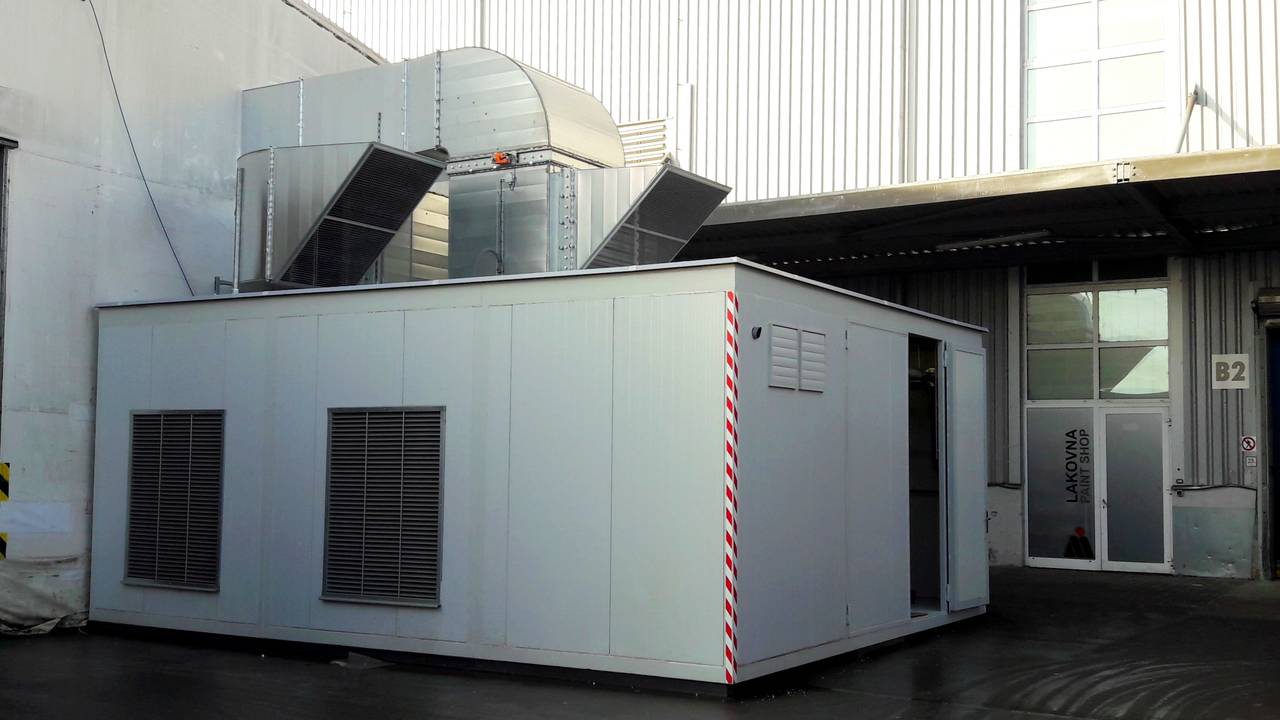

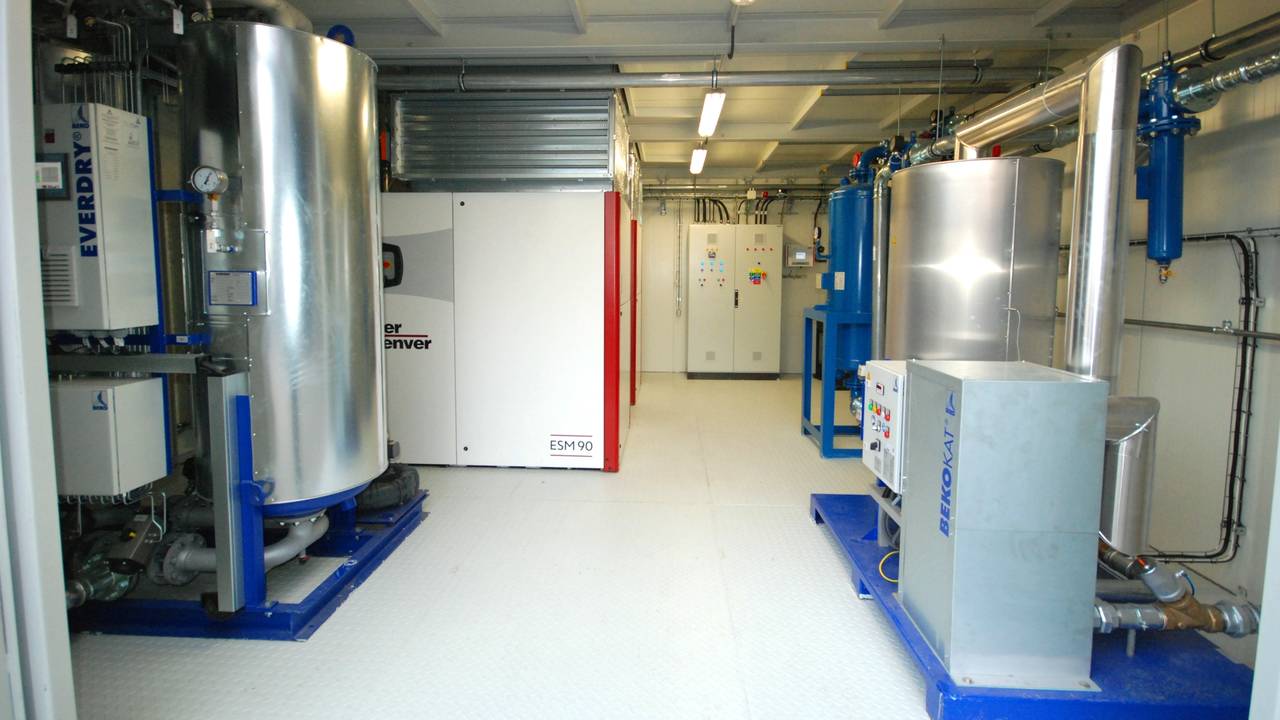

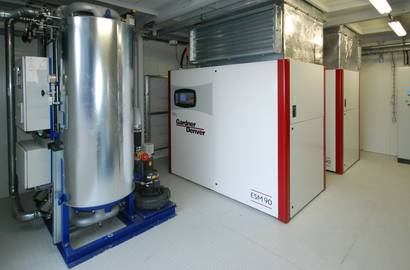

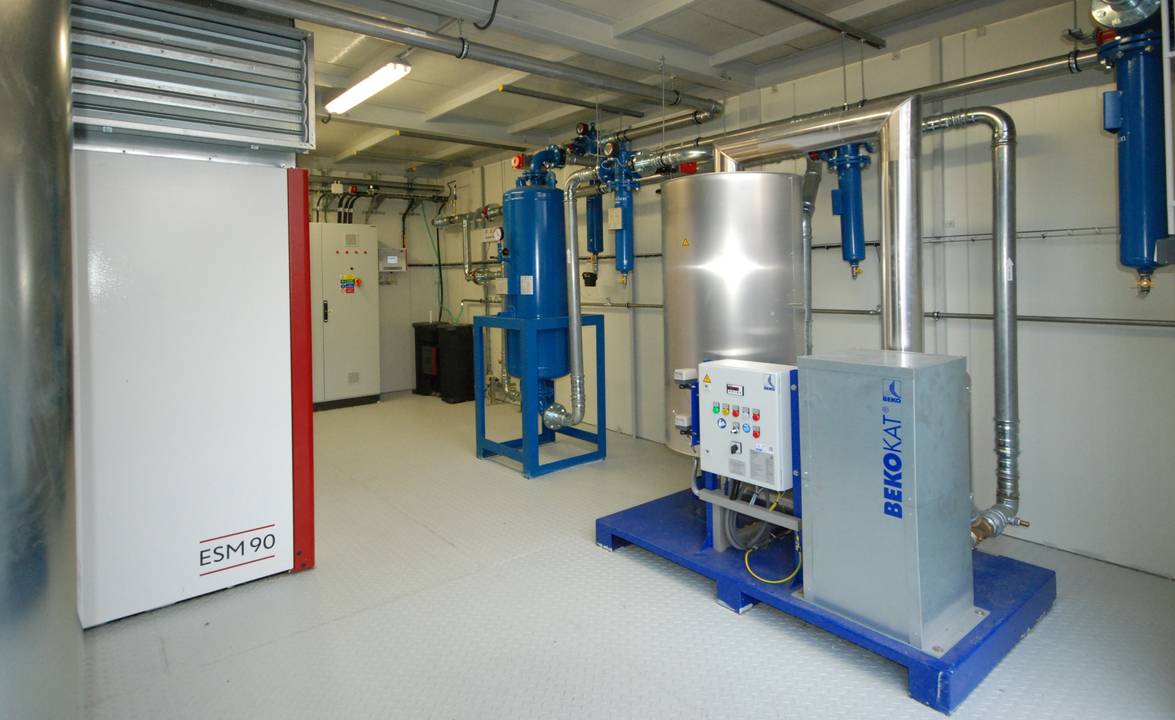

Due to the lack of space in the compressor station, we suggested the installation of the Gardner Denver screw compressors type ESM 90 and VS 90 including the superior GD Connect 12 control system into a technological container including all accessories: air tanks, filters, adsorption dryer and catalytic converter Bekokat. The container is located near the existing compressor station in the company premises without the need to build a new building. The new fully equipped compressor station was put into operation after the site was handed over in 4 weeks.

The compressor station

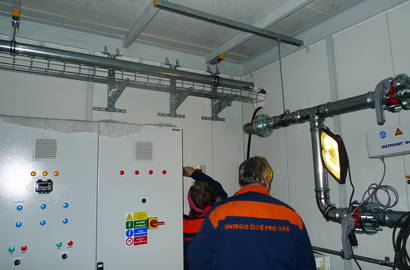

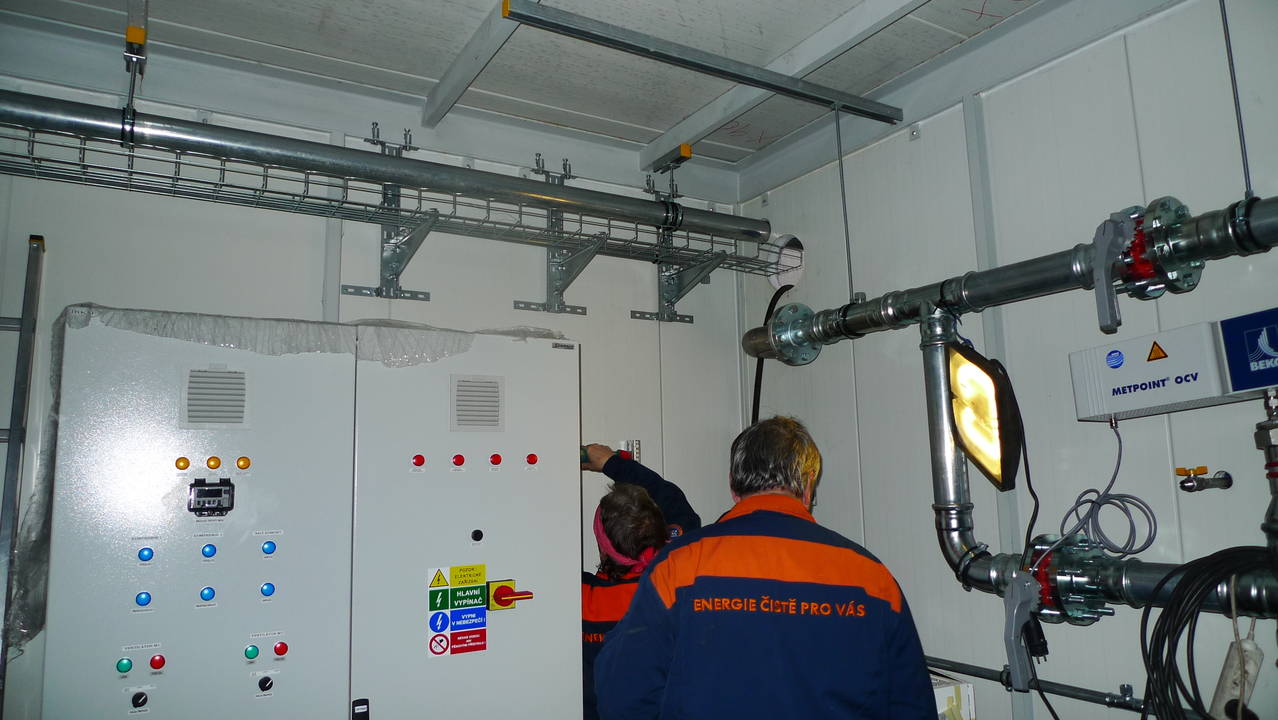

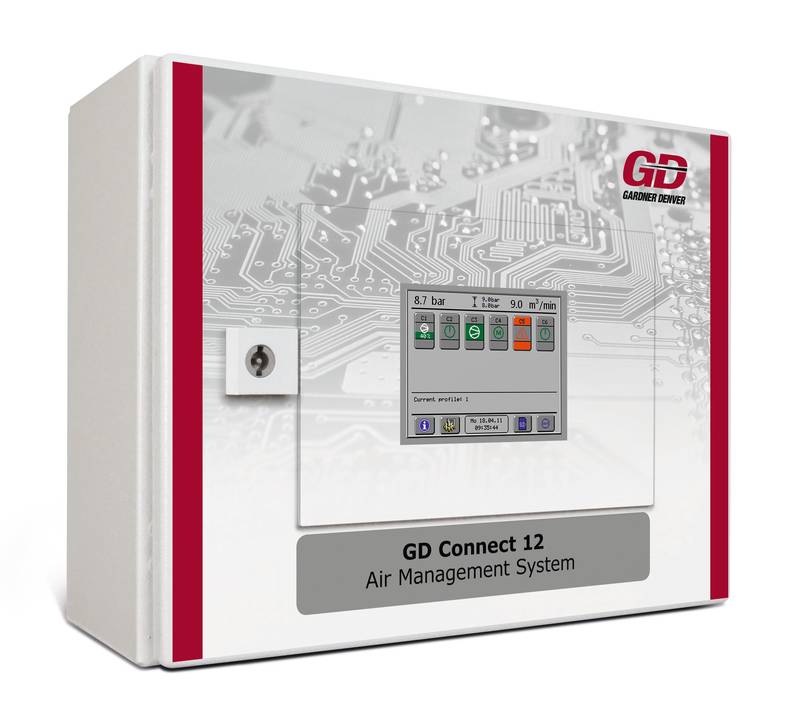

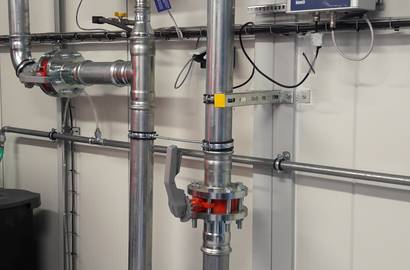

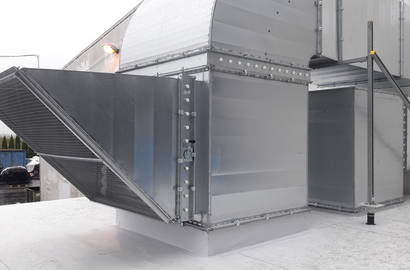

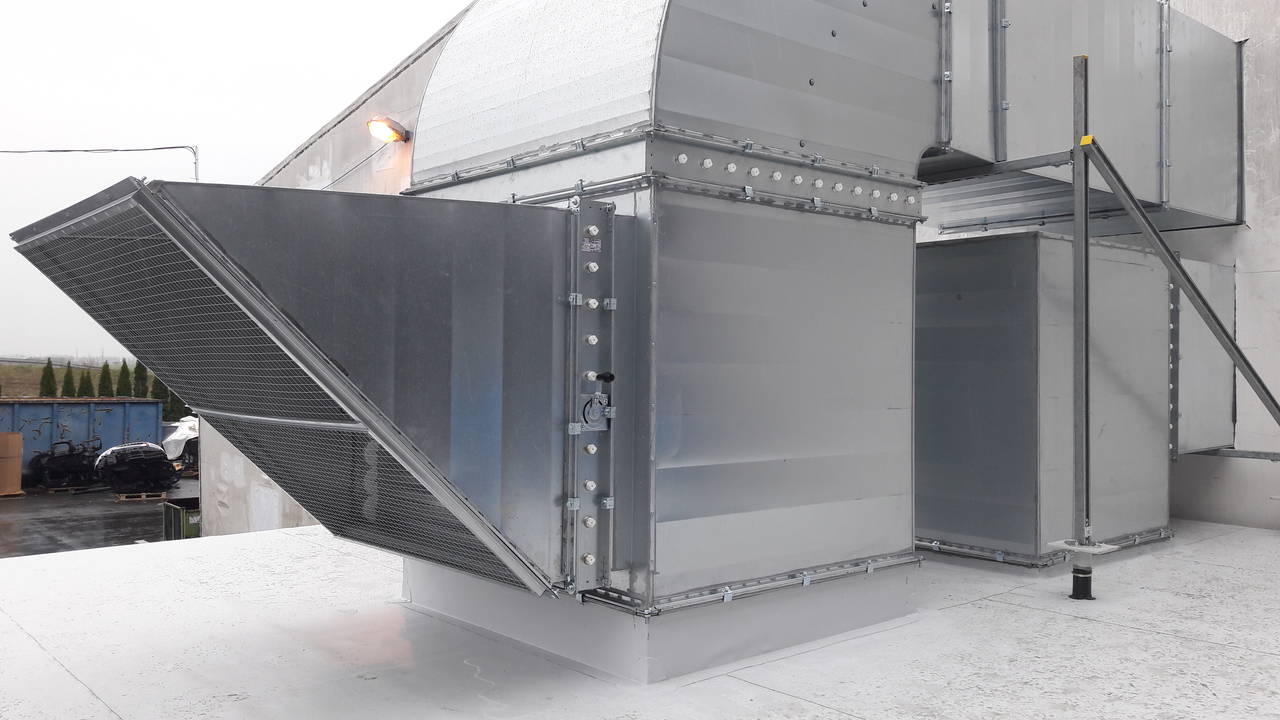

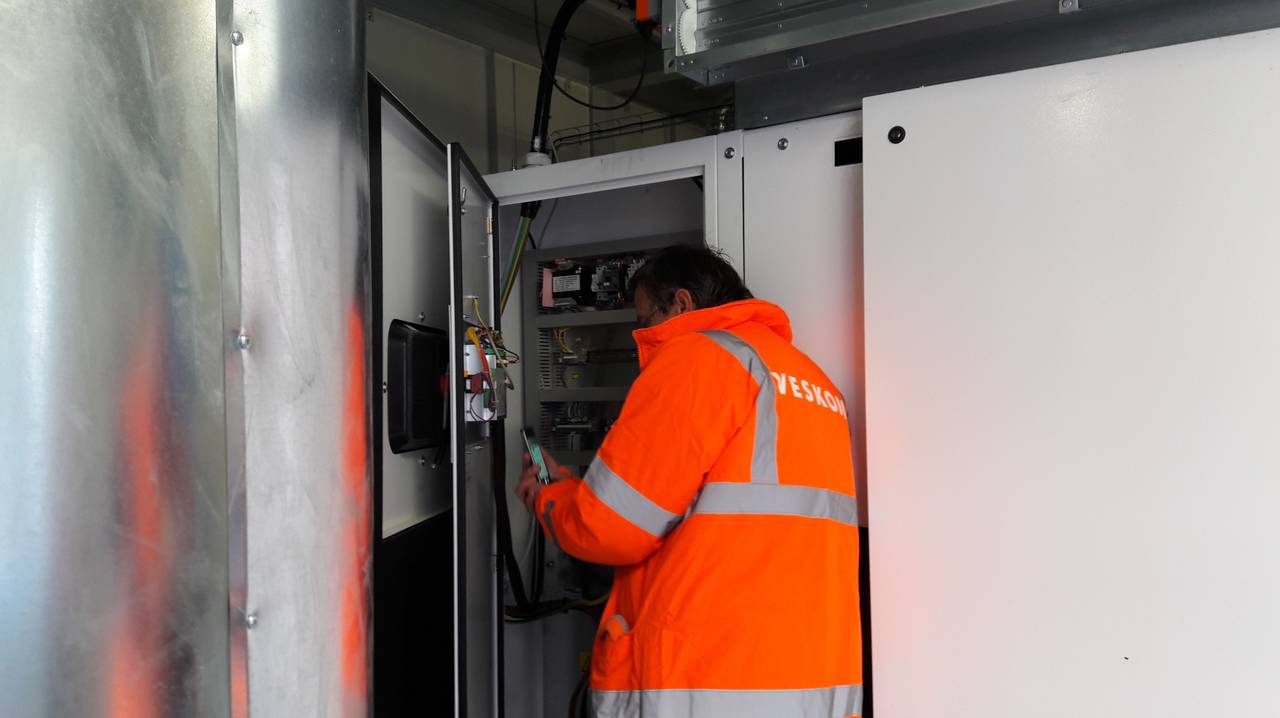

Superior GD Connect 12 control system controls newly installed compressors, including 3 existing GD compressors in the existing compressor station, the first two of which were delivered in 2004. The compressed air piping is mounted in silicon-free zinc-plated carbon steel, connected by pressing. The ventilation of the compressor room is solved as unattended automatic.
