Industrial heat pumps

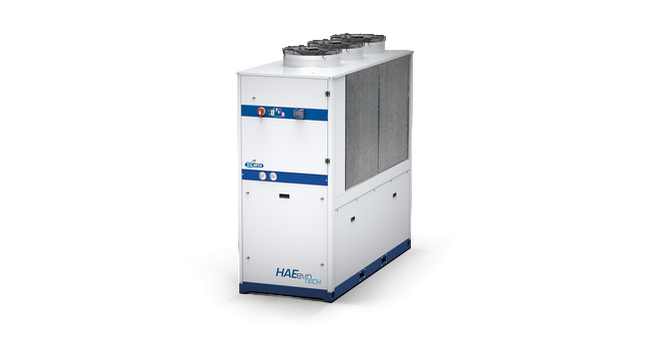

The HAEevo Tech reversible heat pumps are high efficiency units specifically designed for the wine industry, and generally for all the industrial plants where hot water is required.

NOT JUST ENOLOGY

Other applications where the HAEevo Tech heat pumps are effectively employed are:

• the temperature control of the calenders for cooling / heating of plastic films and cylinders for flexographic printing;
• the heating of buildings;
• food plants drying and distillation;
• plants for the processing of wood and paper;
• chemical plants.

ERP READY

Thanks to the new heat exchangers with high surface, the new scroll compressors and the use of R410A refrigerant, the HAEevo Tech units feature energy efficiency class A+ (according to Erp directive -  Ecodesign for energy related products – ENER Lot 1 - Tier 2 09/2017). These heat pumps are suitable for commercialization even after the Erp directive tier 2 that will enter into force from 09/2017.

THE NEW EVOLUTION

Developed starting from the peculiarities of its predecessor HAEevo in R407C, the HAEevo Tech has been greatly enhanced through important technical updates such as the introduction of the refrigerant R410A, the new electronic control IC208CX, the new SN silenced version and the new version suitable for open storage tank systems that  make the HAEevo Tech units very efficient and capable to meet the most varied application needs.

BENEFITS

- Low pressure drops and reduced sensitivity to impurities thanks to the innovative evaporator with finned pack and in-tank configuration;

- High efficiency guaranteed by scroll compressors and heat exchangers with extended heat transfer surface;

- Increased performance thanks to the outstanding heat conductivity of the R410A non ozone depleting refrigerant;

- Cooling circuit suitable both for atmospheric and pressurized hydraulic circuits (up to 6 barg);

- Version with hydraulic circuit suitable for open storage tank systems;

- SN silcended version (mod. 121-351);

- Standard safety water by-pass;

- Wide range of accessories and kits for customised solutions;

- Easy installation, use and maintenance

NEPTUNE TECH is a series of MTA water cooled chillers and heat pumps with inversion cycle on the water side designed for outdoor installation with environmentally friendly R410A refrigerant gas . The water cooled chillers of the NEPTUNE TECH series, offered in a large number of models, versions, and layouts, respond optimally to the complex requirements of use within the context of air conditioning of large civil, private and public structures and within the commercial sector. The multi-scroll logics, adopted across the entire series, allow maximisation of the performance indices with partial loads which account for the largest portion of the working life of an air conditioning unit. Particular attention was paid to the dimensions of the space of these units that must be transported within technical rooms that are often difficult to access.
